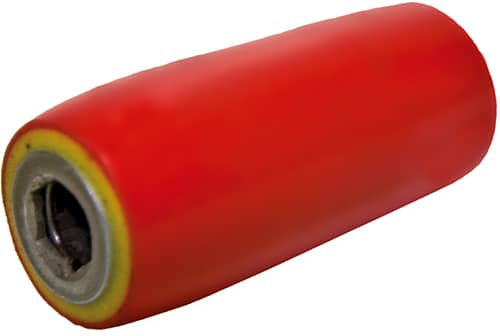

Adapter for bits 1000 V Art. No. 287

• Adapter for ratchets and torque wrenches with 1/4" or 3/8" drive
• Bit holder 1/4" and 3/8" for bits with connection DIN 3126/FORM C6.3 and C8.0
• Internal square drive according to DIN 3120 / ISO 1174
• Fully insulated according to IEC60900
• with ball retaining groove
• with magnet
• friction-locked system
• manufactured according to the latest standard EN 60900 / IEC 60900

Tools with the double triangle symbol are tested and certified with a test voltage of 10,000 volts and are suitable for working on live parts up to 1,000 volts.

All safety tools are stamped with the corresponding symbols of the standard:
IEC 60900 / EN 60900 or with VDE/GS as well as with article number, dimension, year of manufacture, manufacturer, 1000V and double triangle or VDE symbol.
The high-quality insulating plastic is compliant with the REACH regulation
and withstands the latest PAH test.

Dim. / mm	Weight / g	Standard
4 x 70	80
5 x 70	80
6 x 70	85
8 x 70	95
10 x 70	105
12 x 70	125
14 x 70	170
17 x 70	185
19 x 70	195
4 x 100	95
5 x 100	100
6 x 100	100
8 x 100	110
10 x 100	110
12 x 100	160
5 x 140	110
6 x 140	110
5 x 250	125
6 x 250	145
8 x 250	155
10 x 250	190
Other dimensions on request
