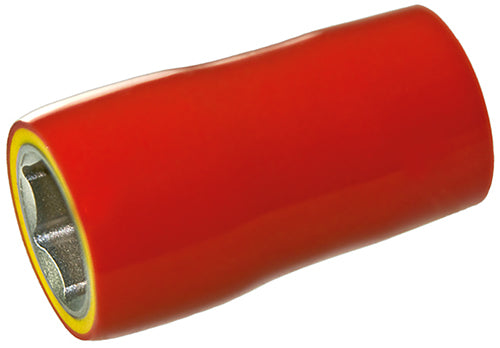

6-Point Sockets 1/4" AF Art. No. 313 AF
6-Point Sockets 1/4" AF Art. No. 313 AF
Price is only visible for activated customers
6-Point Sockets 1/4" AF Art. 313AF-3/16
Couldn't load pickup availability
Properties
Properties
- High-quality 2-color multi-layer insulation "Made in Germany"
- forged from chrome vanadium steel
- oil-hardened
- DIN 7448
- 6-point with 1/4" – square drive with internal grooves for accommodating locking devices on the operating tools
- Internal square drive according to DIN 3120 / ISO 1174
- with ball retaining groove
- manufactured according to the latest standard EN 60900 / IEC 60900
Technical data
Technical data
Tools marked with the double triangle are tested with a test voltage of 10,000 volts, are certified and are suitable for working on live parts up to 1,000 volts.
All safety tools are stamped with the corresponding symbols of the standard:
IEC 60900 / EN 60900 or with VDE/GS as well as with article number, dimension, year of manufacture, manufacturer, 1000V and the double triangle or VDE symbol.
The high-quality insulating plastic is compliant with the REACH regulation
and withstands the latest PAH test.
| Inch | Weight / g | Standard |
|---|---|---|
| 3/16" | 12 |  |
| 1/4" | 12 | |
| 5/16" | 15 | |
| 3/8" | 18 | |
| 7/16" | 18 | |
| 1/2" | 26 | |
| 9/16" | 28 | |
The6-Point Sockets 1/4" AF are a high-quality and versatile tool, forged from chrome vanadium steel and oil-hardened.
It features a 2-color multi-layer insulation, which is made in Germany.
The insert is manufactured according to DIN 7448 and has a 6-point profile with a 1/4" square drive with internal grooves to accommodate locking devices.
IEC 60900/EN 60900 with VDE/GS as well as with article number, dimension, year of manufacture, manufacturer, 1000 V and double triangle or VDE symbol.
The high-quality insulating plastic is compliant with the REACH regulation and withstands the latest PAH test.
