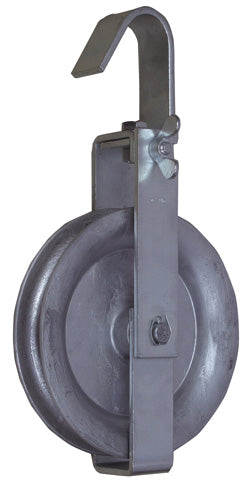

Ausziehrollen für Leitungsbau mit umgreifendem Gehäuse Art. Nr. 2004 - 2011
Ausziehrollen für Leitungsbau mit umgreifendem Gehäuse Art. Nr. 2004 - 2011
Price is only visible for activated customers
Ausziehrollen für Leitungsbau mit umgreifendem Gehäuser + festem Bügel Art. Nr. 2004
Please contact us for a product inquiry via our contact form.
Properties
Properties
- Made in Germany
- with CE mark
- Smooth-running: roller made of aluminum with brass bushing
- Corrosion-protected: housing and bearing bolts made of galvanized steel
- Easy handling:
wing nut for side opening serves for preliminary fastening when tensioning the lines, with the wing nuts you open
the housing sideways to thread cables and overhead lines
and to remove the stringing rollers again after tensioning - with surrounding frame and fixed suspension bracket (version d)
- bearings on both sides for better roller protection and higher load capacity
- galvanized
Technical data
Technical data
Quality assurance measures:
- Constant new and further development of the tools
- Improvement of the manufacturing processes
The stringing rollers are certified by TÜV according to ISO 9001:2015.
All tools are stamped with the CE mark as well as with:
Load capacity / WLL, month and year of manufacture, type designation:
- Before each use, check for damage and proper function.
- Tighten the wing nut firmly and keep the rollers clean.
- Caution: Do not exceed the load capacity / WLL when under load
| Article No. | 2004 | 2011 | |
|---|---|---|---|
| Version | d | d | |
| Roller-Ø | mm | 115 | 200 |
| for rope-Ø | mm | 16 | 29 |
| Rope cross-section | mm² | 150 | 500 |
| Roller width | mm | 26 | 42 |
| Breaking load | approx. kg | 700 | 1,000 |
| Load capacity/WLL | kg | 200 | 250 |
| Weight | approx. kg | 1,200 | 2,800 |
The Stringing Rollers for pulling out conductors are high-quality, TÜV-certified tools "Made in Germany".
They have a surrounding frame and a fixed suspension bracket, as well as bearings on both sides for better roller protection and higher load capacity.
The rollers are made of aluminum with a brass bushing and are very smooth-running.
Corrosion-protected: Housing and bearing bolts made of galvanized steel.
Our stringing rollers for line construction are indispensable aids in the installation of cables and overhead lines.
Before use, the rollers should be checked for damage and proper function, and the wing nut should be tightened firmly.
The load capacity must not be exceeded.
