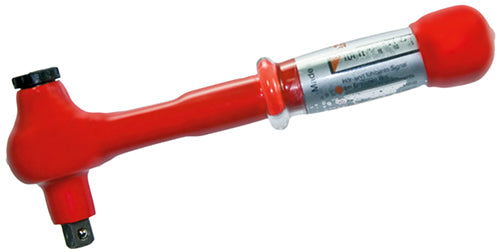

Torque Wrench „Mini“ 1/4" Art. No. 281
Torque Wrench „Mini“ 1/4" Art. No. 281
Price is only visible for activated customers
Torque Wrench „Mini“ 1/4" Art. 281-2-10Nm
Couldn't load pickup availability
Properties
Properties
- smallest design size
- especially for confined spaces
- Length: approx. 200 mm
- with individual serial number
- with calibration certificate
- Friction-locked system
- Transparent insulated scale area with metric and lbf ft values
- precise for up to 5,000 load cycles
- Accuracy ± 4%
- for controlled clockwise tightening
- unlimited loosening torque without torque function
- perceptible torque release
- with robust 30-tooth ratchet mechanism
- DIN EN ISO 6789
- We grant you a 24-month warranty on this product if the calibrations are carried out in our facility
- manufactured according to the latest standard EN 60900/ IEC 60900
Technical data
Technical data
Tools marked with the double triangle are tested with a test voltage of 10,000 volts, are certified, and are suitable for working on live parts up to 1,000 volts.
All safety tools are stamped with the corresponding symbols of the standard:
IEC 60900/ EN 60900 with VDE/GS as well as with article number, dimension, year of manufacture, manufacturer, 1000 V and the double triangle or VDE symbol.
The high-quality insulating plastic is compliant with the REACH regulation
and withstands the latest PAH test.
| Nm | Weight / g | Standard |
|---|---|---|
| 2-10 Nm | 400 |  |
| 5-25 Nm | 420 | |
Art. No. 281 Torque Wrench „Mini“ 1/4" is a multiple dip-insulated tool with a length
of approx. 200 mm and is specially designed for use in confined spaces.
It features an individual serial number as well as a transparently insulated
scale area with metric and lbf-ft values.
It is delivered with a calibration certificate.
The precise torque wrench is suitable for up to 5,000 load cycles and has an accuracy
of ± 4% up to 10 Nm, and ± 6% from 10 Nm upwards.
It is suitable for controlled clockwise tightening and features a robust 30-tooth ratchet mechanism.
The torque wrench complies with the standard DIN EN ISO 6789 and can and should be regularly serviced and calibrated.
We are happy to perform the calibration in-house.
All safety tools are stamped with the corresponding symbols of the standard:
IEC 60900/EN 60900 with VDE/GS as well as with article number, dimension, year of manufacture, manufacturer,
1000 V and double triangle or VDE symbol.
The high-quality insulating plastic is compliant with the REACH regulation and withstands the latest PAH test.
