ISOTOOLS GmbH & Co. KG

Torque Wrench 1000 V 3/8" Art. No. 307

Torque Wrench 1000 V 3/8" Art. No. 307

Price is only visible for activated customers

Torque Wrench 1000 V 3/8" Art. No. 307-5-25Nm

Variant

Properties

Technical data

Tools marked with the double triangle are tested with a test voltage of 10,000 volts, are certified, and are suitable for working on live parts up to 1,000 volts.
All safety tools are stamped with the corresponding symbols of the standard:
EN 60900 / IEC 60900 with VDE/GS as well as with article number, dimension, year of manufacture, manufacturer, 1000 V and the double triangle or VDE symbol.
The high-quality insulating plastic is compliant with the REACH regulation and withstands the latest PAH test. adjustable

Nm Length / mm Weight / g Standard
2,5-25 Nm 280 920 1000V
5-50 Nm 370 1.070 1000V

View full details

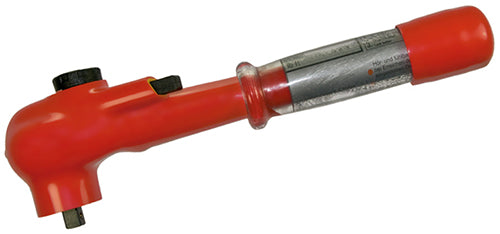

This Torque Wrench is a multi-layer insulated precision tool with a test voltage of 10,000 volts and is suitable for working on live parts up to 1,000 volts.
It features a built-in reversible ratchet and is available in lengths of 280 mm (5-25 Nm) and 370 mm (5-50 Nm).
The wrench is individually adjustable and is delivered with an individual serial number and a calibration certificate.
It offers a precise accuracy of ± 4% for up to 5,000 load cycles and allows for controlled clockwise tightening with a perceptible torque release.
The robust 30-tooth ratchet mechanism and the square drive according to DIN 3120 / ISO 1174 with ball lock ensure reliable use.
Our Service:
We grant a 24-month warranty on this product if the calibrations have been carried out in our facility. Calibration naturally includes a new certificate.

All safety tools are stamped with the corresponding symbols of the standard: EN 60900/IEC 60900 with VDE/GS as well as with article number, dimension, year of manufacture, manufacturer, 1000 V and the double triangle or VDE symbol.
The high-quality insulating plastic is compliant with the REACH regulation and withstands the latest PAH test.
