ISOTOOLS GmbH & Co. KG

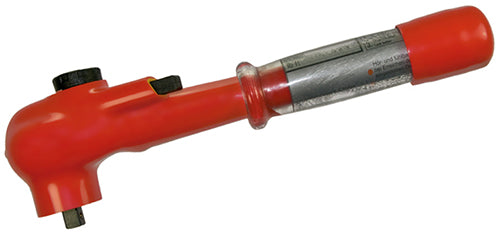

Torque Wrench VDE 1000 V 1/2" Art. No. 308
Torque Wrench VDE 1000 V 1/2" Art. No. 308
Price is only visible for activated customers
Torque Wrench VDE 1000 V 1/2" Art. 308-5-25
Couldn't load pickup availability
Properties
Properties
- with a built-in reversible ratchet
- adjustable
- available in four versions
- for ½“ socket inserts
- with individual serial number
- with calibration certificate
- positive-locking system
- transparently insulated scale area with metric and lbf-ft values
- precise for up to 5,000 load cycles
- accuracy ± 4%
- for controlled clockwise tightening
- unlimited loosening torque without torque function
- tactile torque release
- with a robust 30-tooth ratchet mechanism
- square drive according to DIN 3120 / ISO 1174 with ball lock
- Service: maintenance and calibration incl. a new certificate
- for storing the torque wrenches, we recommend our padded protective bags Art. No. 309
- manufactured according to the latest standard EN 60900 / IEC 60900
Technical data
Technical data
Tools with the double triangle symbol are tested and certified with a test voltage of 10,000 volts
and are suitable for working on live parts up to 1,000 volts.
All safety tools are stamped with the corresponding symbols of the standard:
IEC 60900/EN 60900 with VDE/GS as well as with article number, dimension, year of manufacture, manufacturer, 1000 V and double triangle or VDE symbol.
The high-quality insulating plastic is compliant with the REACH regulation and
withstands the latest PAH test.
| mm | Weight / g | Standard |
|---|---|---|
| 160 | 205 |  |
VDE 1000 V 1/2" positive-locking Torque Wrench with a built-in reversible ratchet.
Adjustable to the required Nm, available in four versions.
With an individual serial number and calibration certificate.
Positive-locking system with a transparently insulated scale area with metric and lbf-ft values.
Precise for up to 5,000 load cycles.
Accuracy ± 4%.
For controlled clockwise tightening.
Unlimited loosening torque without a torque function, with a tactile torque release.
With a robust 30-tooth ratchet mechanism.
Square drive according to DIN 3120 / ISO 1174 with ball lock.
Our service:
We offer a 24-month warranty on this product, provided that calibrations are performed by our in-house service.
Calibration, of course, incl. a new certificate.
All safety tools are stamped with the corresponding symbols of the standard:
IEC 60900/EN 60900 with VDE/GS as well as with article number, dimension, year of manufacture, manufacturer, 1000 V and double triangle or VDE symbol.
The high-quality insulating plastic is compliant with the REACH regulation and withstands the latest PAH test.
