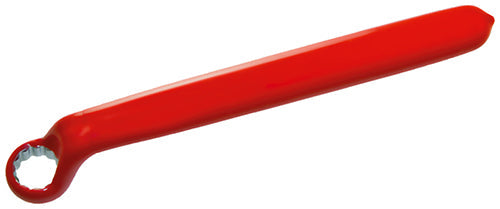

Ring Spanner VDE GS 1000 V DIN 7447 Art. No. 210

Ring Spanner VDE GS 1000 V DIN 7447 Art. No. 210

Price is only visible for activated customers

Ring Spanner VDE GS 1000 V DIN 7447 Art. No. 210-6

Variant

Please contact us for a product inquiry via our contact form.

Properties

  • High-quality 2-color multi-layer insulation "Made in Germany"
  • forged from chrome vanadium steel (DIN 838)
  • deeply offset 75°
  • DIN 7447
  • for hexagonal screws
  • Flank Traction profile
  • manufactured according to the latest standard VDE / EN 60900 / IEC 60900

Technical data

Tools marked with the double triangle are tested with a test voltage of 10,000 volts, are certified, and are suitable for working on live parts up to 1,000 volts.All safety tools are stamped with the corresponding symbols of the standard:IEC 60900 / EN 60900 or with VDE/GS as well as with article number, dimension, year of manufacture, manufacturer, 1000V and the double triangle or VDE symbol.The high-quality insulating plastic is compliant with the REACH regulation and withstands the latest PAH test.

Dim./mm Length / mm Weight / g Standard
6 140 46 vde-gs-triangle
7 140 60 vde-gs-triangle
8 140 60 vde-gs-triangle
9 140 60 vde-gs-triangle
10 165 80 vde-gs-triangle
11 175 86 vde-gs-triangle
12 185 100 vde-gs-triangle
13 195 110 vde-gs-triangle
14 200 160 vde-gs-triangle
15 205 170 vde-gs-triangle
16 205 202 vde-gs-triangle
17 210 260 vde-gs-triangle
18 220 260 vde-gs-triangle
19 230 290 vde-gs-triangle
20 230 300 1000V
21 230 310 1000V
22 250 320 vde-gs-triangle
24 260 490 vde-gs-triangle
27 280 540 vde-gs-triangle
30 300 580 vde-gs-triangle
32 300 590 vde-gs-triangle
Other dimensions on request

View full details

Ring Spanner VDE GS 1000 V DIN 7447 Art. No. 210 with a 2-color multi-layer insulation "Made in Germany". Forged from chrome vanadium steel (DIN 838), deep offset 75° according to DIN 7447. For hexagonal screws with Flank Traction profile. Manufactured according to the latest standard VDE / EN 60900 / IEC 60900.

Tools marked with the double triangle are tested with a test voltage of 10,000 volts, are certified, and are suitable for working on live parts up to 1,000 volts.

All safety tools are stamped with the corresponding symbols of the standard:IEC 60900 / EN 60900 or with VDE/GS as well as with article number, dimension, year of manufacture, manufacturer, 1000V and the double triangle or VDE symbol.

The high-quality insulating plastic is compliant with the REACH regulation and withstands the latest PAH test.
