ISOTOOLS GmbH & Co. KG
Wire Stretchers CEsuper strong Art. No. 8061
Wire Stretchers CEsuper strong Art. No. 8061
Price is only visible for activated customers

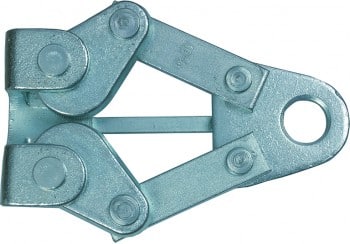

Wire Stretchers super strong Art. No. 8061
Couldn't load pickup availability
Properties
Properties
- Made in Germany
- High-quality special steel
- Steel parts galvanized
- Corrosion protection
- for tensioning ropes and wires
- especially for pulling out probe rods during soil sampling
- with hardened steel jaws and overlapping claw with guide
Technical data
Technical data
Quality assurance measures:
- Constant new and further development of the tools
- Improvement of the manufacturing processes
The tools are certified by TÜV according to ISO 9001:2015.
All tools are stamped with the CE mark, as well as with:
Rope diameter, rope type, load capacity /WLL, month and year of manufacture.
Instructions for use, maintenance and care for all clamps:
- Check the clamp for damage/cracks and proper function before each use
- Use the correct clamp type and appropriate size
- Always keep the clamping channel of the jaws and the teeth clean, dry,
and free of oil and grease to prevent the ropes from slipping - Do not apply sudden loads to the clamp
- Increase the pulling force slowly to prevent the rope from slipping through
and destroying the teeth - Only oil the rivets!
| Article No. | 8061 | |
|---|---|---|
| Capacaty Ø | mm | 10 - 25 |
| Breaking load | approx. kg | 3,000 |
| Load capacity / WLL | kg | 1,500 |
| Weight | kg | 2.620 |
The Art. No. 8061 Wire Stretcher super strong Made in Germany, is a high-quality and durable tool for tensioning ropes and wires.
With hardened steel jaws and an overlapping claw with a guide, it allows for easy and safe extraction of probe rods during soil sampling.
The tools are TÜV-certified according to ISO 9001:2015 and stamped with the CE mark.
