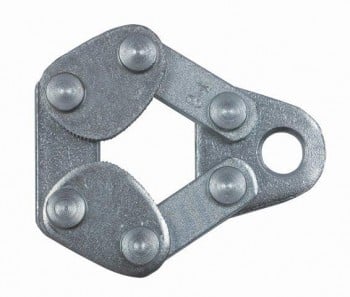

Froschklemmen CE zum Spannen von Seilen, Drähten und Stangen Art. Nr. 8009-8047
Froschklemmen CE zum Spannen von Seilen, Drähten und Stangen Art. Nr. 8009-8047
Price is only visible for activated customers
Froschklemmen CE zum Spannen von Seilen, Drähten und Stangen, Art. 8009
Please contact us for a product inquiry via our contact form.
Properties
Properties
- High-quality special steel
- Steel parts galvanized
- Corrosion protection
- smooth-running clamping jaws with large rivets
- hardened steel jaws
- for reliable tensioning of ropes and wires
Technical data
Technical data
"Made in Germany" Quality assurance measures: Constant new and further development of the tools Improvement of the manufacturing processes TÜV-certified QM system according to ISO 9001:2015 All tools are stamped with the CE mark, as well as with: Rope diameter, load capacity / WLL, month and year of manufacture. Instructions for use, maintenance and care for all clamps: Check the clamp for damage/cracks and proper function before each use Use the correct clamp type and appropriate size Always keep the clamping channel of the jaws and the teeth clean, dry, and free of oil and grease to prevent the ropes from slipping. Do not apply sudden loads to the clamp Increase the pulling force slowly to prevent the rope from slipping through and destroying the teeth. Only oil the rivets! Attention: Do not exceed the load capacity / WLL under load.
| Article No. | 8009 | 8016 | 8023 | 8030 | 8047 | |
|---|---|---|---|---|---|---|
| Clamping Ø | mm | 1-3 | 1-4 | 1-5 | 1-8 | 1-12 |
| Breaking load | approx. Kg | 400 | 500 | 800 | 1,200 | 1,800 |
| Load capacity/WLL | Kg | 200 | 250 | 400 | 600 | 900 |
| Weight | Kg | 0.110 | 0.260 | 0.380 | 0.610 | 1.000 |
The Art. No. 8009-8047 Wire Stretchers are high-quality tools made of special, galvanized steel with excellent corrosion protection.
They are certified by TÜV according to ISO 9001:2015 and offer a high load capacity.
The clamping jaws are smooth-running and fitted with large rivets, the jaws are hardened and allow for reliable tensioning of ropes and wires.
