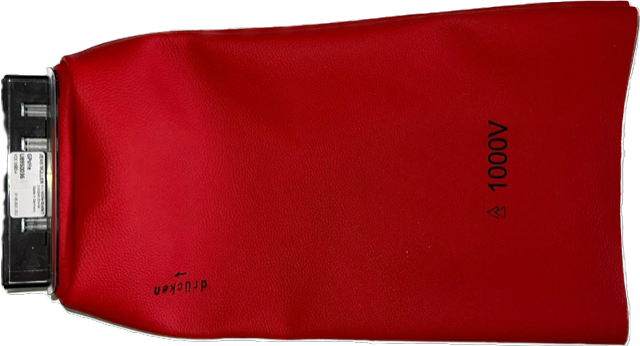

NH Fuse Insertion Glove 1000 V Art. No. 680
NH Fuse Insertion Glove 1000 V Art. No. 680
Price is only visible for activated customers
NH Fuse Insertion Glove 1000 V Art. No. 680
Couldn't load pickup availability
Properties
Properties
- with red leather cuff
- for inserting and replacing low-voltage high-performance fuses (NH fuse links)
- with contact blades of sizes 00 to 3 for a nominal voltage up to 1000 V
alternating current - DIN VDE 0680-4:1980-11 / GS-ET-38:2022-01
- delivered with an instruction manual
Technical data
Technical data
Suitable for working on live parts up to 1,000 volts.
The NH Fuse Insertion Gloves are stamped with the corresponding symbols of their standard:
VDE/GS symbol, 1000 V, manufacturer, year of manufacture, special marking
for DIN VDE 0680-4
| Dim./mm | Weight/g | Standard |
|---|---|---|
| 385 | 460 | DIN VDE 0680-4:1980-11/GS-ET-38:2022-01 |
Art. No. 680 NH Fuse Insertion Glove (1,000 V AC, 1,500 V DC) complies with the relevant harmonization regulations of the EU
according to the 2016/425/EU Regulation on personal protective equipment according to the following standards:
DIN VDE 0680-4:1980-11
GS-ET 38:2022-01
The NH Fuse Insertion Glove is used exclusively for inserting and removing NH fuse links of sizes NH 000 to NH3
from fuse bases and NH fuse rails according to:
DIN VDE0636-2/HD 60269-2
The NH Fuse Insertion Glove are stamped according to the standard.
