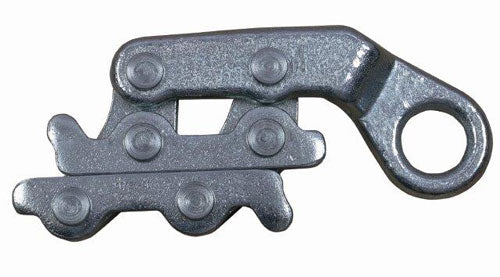

Seilspannklemme für Aluminiumseile AAAC, AAC, Aluminiumseile mit Stahlseele ACSR, Art. Nr. 6006-6063
Seilspannklemme für Aluminiumseile AAAC, AAC, Aluminiumseile mit Stahlseele ACSR, Art. Nr. 6006-6063
Price is only visible for activated customers
Seilspannklemme für Aluminiumseile AAAC, AAC, Aluminiumseile mit Stahlseele ACSR Art. Nr. 6006
Please contact us for a product inquiry via our contact form.
Properties
Properties
The tools are certified by TÜV according to ISO 9001:2015.
All tools are stamped with the CE mark, as well as with:
Rope diameter, Working Load Limit / WLL, month and year of manufacture.
Universal application for overhead line and bridge construction, industry and agriculture.
Instructions for use, maintenance and care:
Check the clamp for damage/cracks and proper function before each use.
Use the correct clamp type and appropriate size.
Keep the clamping channel of the jaws and the teeth clean, dry, and free of oil and grease at all times to prevent the ropes from slipping.
Do not subject the clamp to sudden loads.
Increase the tensile force slowly to avoid the rope slipping through and destroying the teeth.
Only oil the rivets!
Attention: Do not exceed the Working Load Limit / WLL under load.
Technical data
Technical data
"Made in Germany"
-
- Quality assurance measures:
BGHM certified occupational safety management
Accident prevention regulation "General regulations (BGV A1)
Accident prevention regulation "Winches, lifting and pulling equipment (BGV D8)-DIN 15020 Part 1
All tools are stamped with the CE mark, as well as with:
Load capacity /WLL, year and month of manufacture and rope diameter.
- with long, parallel clamping jaws made of high-quality, high-strength steel, hardened and galvanized
- not for steel ropes (for that please see from Art. No. 5004)
- easy handling due to easy-to-grip clamping jaws
- automatic hold on the rope due to spring action
- non-slip hold of the rope even at highest pulling force
- particularly hard and durable due to cold forming technology
- Remote release possible: hole in clamping jaw
- The profile of the clamping jaws is specially adapted to aluminum ropes and aluminum ropes with a steel core, so that the material is not damaged.
| Article No. | 6006 | 6018 | 6025 | 6056 | 6063 | |
|---|---|---|---|---|---|---|
| Rope Ø | mm | 5.4 - 8.5 | 5 - 12 | 8 - 18 | 15 - 28 | 20 - 40 |
| Rope cross-section | mm² | 22 - 35 | 16 - 70 | 50 - 150 | 120 - 400 | 240 - 800 |
| Eye size D | mm | 22 round | 27 round | 25 x 38 oval | 30 x 40 oval | 30 x 40 oval |
| Breaking load | approx. Kg | 2,000 | 3,400 | 6,000 | 7,000 | 9,000 |
| Load capacity/WLL | Kg | 1,000 | 1,700 | 3,000 | 3,500 | 4,000 |
| Remote release | Ø mm | 5.0 | 5.0 | 5.5 | 5.5 | 5.5 |
| Weight | Kg | 0.830 | 1.270 | 1.800 | 4.000 | 6.000 |
The Come Along Clamps, Wire Grips for aluminium and A.C.S.R wires best suitable for lines for aluminum ropes AAAC and AAC as well as aluminum ropes with steel core ACSR are manufactured in Germany and are characterized by high quality assurance and continuous development.
- Our wire rope grips are the ideal tool for securely tensioning aluminum ropes and aluminum ropes with a steel core.
- They are versatile for use in industry, agriculture, and bridge construction.
- The profile of the jaws is specially adapted to aluminum and aluminum ropes with a steel core, so that the tensioned material is not damaged.
- Universal application: long, parallel clamping jaws made of high-quality steel
- Maximum tensile force: large pulling eye
- Simple operation: easy-to-grip clamping jaws
- Easy handling: optimized ergonomics
- Remote release possible: hole in the clamping jaw
- Corrosion protection: galvanized, with a long, parallel clamping jaw and large pulling eye
- Automatic grip: spring action on the rope to be tensioned
- Slip-free grip on the rope even at maximum tensile force
- Easy handling: ergonomic design
