Deep Sockets (extra long) 1/2˝ 1000 V Art. No. 323
Deep Sockets (extra long) 1/2˝ 1000 V Art. No. 323
Price is only visible for activated customers
Deep Sockets (extra long) 1/2˝ 1000 V Art. 323-10
Couldn't load pickup availability
Properties
Properties
- with 1/2“ square drive
- 6-point profile
- length: 125 mm
- made of chrome vanadium steel
- forged
- oil-hardened
- DIN 7448
- with internal grooves to accommodate locking devices on the operating tools
- manufactured according to the latest standard EN 60900 / IEC 60900
Technical data
Technical data
Tools with the double triangle symbol are tested and certified with a test voltage of 10,000 volts and are suitable for working on live parts up to 1,000 volts.
All safety tools are stamped with the corresponding symbols of the standard:
IEC 60900/EN 60900 with VDE/GS as well as with article number, dimension, year of manufacture, manufacturer, 1000 V and double triangle or VDE symbol.
The high-quality insulating plastic is compliant with the REACH regulation and withstands the latest PAH test.
| mm | Weight / g | Standard |
|---|---|---|
| 250 | 480 |  1000 V |

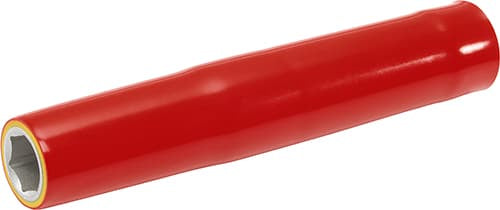

The 1/2" Deep Sockets (extra long), are a multiple dip-insulated tool with a square drive and a 6-point profile.
It is forged from high-quality chrome vanadium steel and is oil-hardened.
The insert features internal grooves to accommodate locking devices.
Tools with the double triangle symbol are tested and certified with a test voltage of 10,000 volts and are suitable for working on live parts up to 1,000 volts.
All safety tools are stamped with the corresponding symbols of the standard:
IEC 60900/EN 60900 or with VDE/GS as well as with article number, dimension, year of manufacture, manufacturer, 1000V and double triangle or VDE symbol.
The high-quality insulating plastic is compliant with the REACH regulation
and withstands the latest PAH test.
