ISOTOOLS GmbH & Co. KG

12-Point Sockets 3/8" 1000 V Art. No. 315 AF

12-Point Sockets 3/8" 1000 V Art. No. 315 AF

Price is only visible for activated customers

12-Point Sockets 3/8" 1000 V Art. 315 AF 1/4"

Variant

Properties

Technical data

Tools marked with the double triangle are tested with a test voltage of 10,000 volts, are certified and are suitable for working on live parts up to 1,000 volts.
All safety tools are stamped with the corresponding symbols of the standard:
IEC 60900 or with VDE/GS as well as with article number, dimension, year of manufacture, manufacturer, 1000V and the double triangle or VDE symbol.
The high-quality insulating plastic is compliant with the REACH regulation
and withstands the latest PAH test.

InchWeight / gStandard
1/240Doppeldreieck1000 V
1/430Doppeldreieck1000 V
11/1650Doppeldreieck1000 V
13/1660Doppeldreieck1000 V
15/1665Doppeldreieck1000 V
3/460Doppeldreieck1000 V
3/835Doppeldreieck1000 V
5/1630Doppeldreieck1000 V
5/845Doppeldreieck1000 V
7/1635Doppeldreieck1000 V
7/860Doppeldreieck1000 V
9/1640Doppeldreieck1000 V
Other dimensions on request

View full details

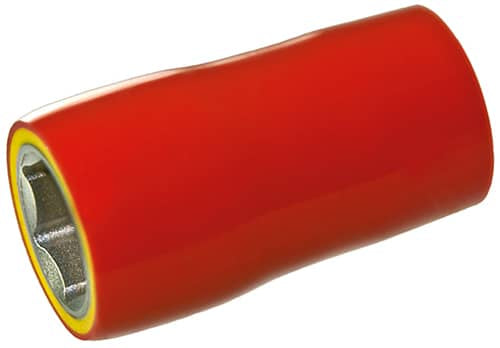

12-Point Sockets 3/8" Art. No. 315 AF is a multi-layer insulated tool with a 3/8" square drive and 12-point.
It is forged from chrome vanadium steel and oil-hardened, with internal grooves to accommodate
locking devices on the fastening tools.
It is manufactured according to the DIN 7448 standard.

Tools marked with the double triangle are tested with a test voltage of 10,000 volts, are certified and are suitable for
working on live parts up to 1,000 volts. All safety tools are stamped with the corresponding symbols of the standard:
IEC 60900 with VDE/GS as well as with article number, dimension, year of manufacture, manufacturer, 1000 V and the double triangle or VDE symbol.
The high-quality insulating plastic is compliant with the REACH regulation and withstands the latest PAH test.
