Reversible Ratchet 1000 Art. No. 280

Reversible Ratchet 1000 Art. No. 280

Price is only visible for activated customers

Reversible Ratchet 1000 Art. 280-1/2"

Variant

Properties

  • made of chrome vanadium steel
  • square drive according to DIN 3120 / ISO 1174 with ball lock
  • reversible 32-tooth ratchet head
  • with external square drive 3/8"", 1/4"" or 1/2""
  • for holding socket inserts
  • one-hand locking system
  • reversible right and left operation
  • friction-locking system: release force 50 Nm
  • simple locking of the operating tools by a
    Not mechanically locked system with 50 Nm according IEC 60900
  • manufactured according to the latest standard EN 60900 / IEC 60900

Technical data

Tools with the double triangle symbol are tested and certified with a test voltage of 10,000 volts and are suitable for working on live parts up to 1,000 volts.
 All safety tools are stamped with the corresponding symbols of the standard:
VDE/IEC 60900/EN 60900 with VDE/GS as well as with article number, dimension, year of manufacture, manufacturer, 1000 V and double triangle or VDE symbol.
The high-quality insulating plastic is compliant with the REACH regulation and
withstands the latest PAH test.

Dim. / mm Weight / g Standard
160 220 1000V

View full details

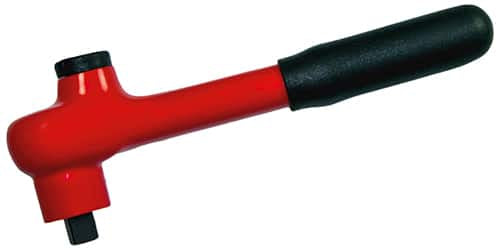

The Art. No. 280 Reversible Ratchet is a multiple dip-insulated ratchet made of chrome vanadium steel with a reversible 32-tooth ratchet head.
With a patented push-button locking system to prevent unintentional release of the socket inserts.
It is available in 3/8"", 1/4"", and 1/2"" and ensures very easy handling.
Clock and Counter lock operation.
Not mechanically system with 50 Nm according IEC 60900

Tools with the double triangle symbol are tested and certified with a test voltage of 10,000 volts and are suitable for working on live parts up to 1,000 volts.

All safety tools are stamped with the corresponding symbols of the standard:
IEC 60900 / EN 60900 or with VDE/GS as well as with article number, dimension, year of manufacture, manufacturer, 1000V and double triangle or VDE symbol.
The high-quality insulating plastic is compliant with the REACH regulation
and withstands the latest PAH test.
