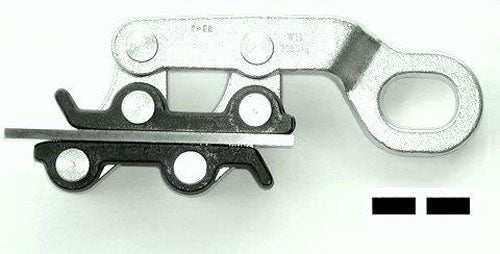

Universal Clamp with flat jaws Art. No. 9026-9040
Universal Clamp with flat jaws Art. No. 9026-9040
Price is only visible for activated customers
Universal Clamp with flat jaws Art. No. 9026
Couldn't load pickup availability
Properties
Properties
- for holding flat steel, strapping band and rail systems
- in elevator construction for emergency rescue
- galvanized, with long parallel clamping jaws made of high-quality high-strength steel, hardened and burnished
- remote release possible: hole in clamping jaw
- automatic hold: spring action on the steel parts to be tensioned
- Slip-free grip on the steel parts even at maximum tensile force
- The clamping jaws are not profiled, so materials are not damaged
Technical data
Technical data
"Made in Germany"
Quality assurance measures:
TÜV certified management according to the requirements of ISO 9001:2015
BGHM certified occupational safety management
Applied national standards and accident prevention regulations (UVV):
UVV "General regulations (VBG 1)
UVV "Winches, lifting and pulling equipment (VBG D8)- DIN 15020 Part 1,
Lifting equipment
DIN EN ISO 12100:2011-03 "Safety of machinery"
All tools are stamped with the CE mark, as well as with:
Rope diameter, load capacity /WLL, month and year of manufacture.
Instructions for use, maintenance and care:
Check the clamp for damage/cracks and proper function before each use.
Use the correct clamp type and appropriate size.
Always keep the clamping channel of the jaws and the teeth clean, dry, and free of oil and grease to prevent the ropes from slipping.
Do not apply sudden loads to the clamp.
Increase the pulling force slowly to prevent the rope from slipping through and destroying the teeth.
Only oil the rivets!
Attention: Do not exceed the load capacity / WLL under load.
| Article No. | 9026 | 9040 | |
|---|---|---|---|
| Clamping range | mm | 1 - 9 | 1 - 18 |
| Eye size "D" | mm | 22 round | 25 x 28 oval |
| Breaking load | kg | 2,500 | 7,000 |
| Load capacity / WLL | kg | 1,000 | 3,000 |
| Remote release | Ø mm | 5.0 | 5.5 |
| Weight | kg | 0.850 | 1.850 |
The Universal Clamp with flat jaws is a high-quality tool for elevator construction, overhead line and bridge construction, industry, and agriculture.
It is TÜV-certified according to ISO 9001:2015 and is characterized by constant new and further development as well as improvement of manufacturing processes.
It is versatile and can accommodate flat steel, strapping band, and rail systems.
The clamping jaws are galvanized and made of high-quality high-strength steel, hardened and burnished.
Through a remote release and spring action, the steel parts are held slip-free.
The clamping jaws are not profiled, so that materials are not damaged.
It is important to check the clamp for damage and proper function before each use.
