VDE Extension Bars 1000 V Art. No. 310
VDE Extension Bars 1000 V Art. No. 310
Price is only visible for activated customers
VDE Extension Bars 1000 V Art. 310-1/2"-125
Couldn't load pickup availability
Properties
Properties
Technical data
Technical data
Tools with the double triangle symbol are tested and certified with a test voltage of
10,000 volts and are suitable for working on live
parts up to 1,000 volts.
All safety tools are stamped with the corresponding symbols of the standard:
VDE / EN 60900 / IEC 60900 with VDE/GS as well as with article number, dimension, year of manufacture, manufacturer, 1000 V and double triangle or VDE symbol.
The high-quality insulating plastic is compliant with the REACH regulation and
withstands the latest PAH test.
| Dim. / mm | Weight / g | Standard |
|---|---|---|
| 3/8″ - 125 continous bore | 140 |  |
| 3/8″ - 250 | 280 | |
| 1/2″ - 125 continous bore | 190 | |
| 1/2″ - 250 | 400 | |

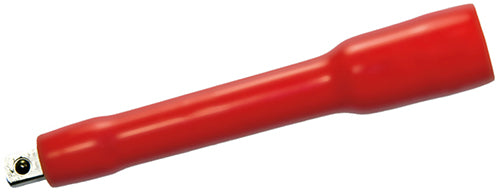

The Art. No. 310 VDE Extension Bars are a high-quality tool, made of chrome vanadium steel and oil-hardened.
Mechanically locked system up to 500 Nm according to IEC 60900.
The extension has a locking device to prevent unintentional release of the drive and socket tools.
With multi-layer insulation for optimal visual inspection.
Tools with the double triangle symbol are tested and certified with a test voltage of 10,000 volts and are suitable for working on live parts up to 1,000 volts.
All safety tools are stamped with the corresponding symbols of the standard:
VDE / IEC 60900 / EN 60900 or with VDE/GS as well as with article number, dimension, year of manufacture, manufacturer, 1000 V
and double triangle or VDE symbol.
The high-quality insulating plastic is compliant with the REACH regulation and withstands the latest PAH test.
