Tool case 1000 V 1/2" 51-piece Art. No. 814
Tool case 1000 V 1/2" 51-piece Art. No. 814
Price is only visible for activated customers
Tool case 1000 V 1/2" 52-piece Art. No. 814-1
Couldn't load pickup availability
Properties
Properties
- Red leather tool case
- complete with 51 safety tools and protective devices
- also suitable for working on hybrid and electric vehicles
- Of course, we are also happy to customize the contents according to your wishes.
- manufactured according to the latest standard VDE / EN 60900 / IEC 60900
Technical data
Technical data
Tools with the double triangle symbol are tested and certified with a test voltage of 10,000 volts and are suitable for working on live parts up to 1,000 volts.
All safety tools are stamped with the corresponding symbols of the standard:
VDE/EN 60900/ IEC 60900 with VDE/GS as well as with article number, dimension, year of manufacture, manufacturer, 1000 V and double triangle or VDE symbol.
The high-quality insulating plastic is compliant with the REACH regulation and withstands the latest PAH test.
| Contents |
|---|
| 1 Engineers' Pliers 185 mm |
| 1 Wire Cutter 160 mm |
| 1 Long Nose Pliers 200 mm |
| 1 Side Cutting Nipper 160 mm |
| 6 pcs. Open-End Spanners in 10, 13, 14, 17, 19 and 22 mm |
| 6 pcs. Ring Spanners in 10, 13, 14, 17, 19 and 22 mm |
| 1 Reversible Ratchet 1/2" |
| 2 pcs. Exentension Bars 1/2" in 125 + 250 mm |
| 8 pcs. 6-Point Sockets 1/2" in 10, 11, 12, 13, 14, 17, 19 and 22 mm |
| 1 T-Shaped Lever 1/2" - 200 mm |
| 4 Screwdrivers for slotted Screws in 0,6x2,8x75; 0,8x4,0x100; 1,0x5,5x125; 1,2x6,5x150 mm |
| 1 Cross Slot Screwdriver PH/Philips Size 2 |
| 1 Cabel Stripping Knife 50 mm Blade |
| 1 Ins. Stripping Knife 35 mm Blade |
| 2 Rubber Towels 250 x 350 x 1 mm |
| 2 Rubber Towels 500 x 500 x 1 mm |
| 1 Electrical Safety Gloves 1000 V Gr. 9, 10 or 11 |
| 1 Under-Gloves |
| 2 Plastic Clamps 160 mm |
| 2 Plastic Clamps 80 mm |
| 1 Plastic Plier 180 mm |
| 2 pcs. Self Clamping Caps 10 x 100 mm |
| 2 pcs. Self Clamping Caps 30 x 120 mm |
| 1 Tool Case red 480 x 370 x 210 mm |
| optional additional 1 Plastic case with foam padding 1/4"with: |
| 1 Torque Wrench 1/4" in 2 - 25 Nm |
| 3 pcs. Extension Bars 1/4" in 75, 100 and 150 mm |
| 1 Adapter with Bitholder 1/4" x 40 C6.3 |
| 5 pcs. 6-Point Sockets 1/4" in 6, 8, 10, 13 and 14 mm |
| 10 Bits: Inbus: 5, 6, 8 / Schlitz: 4; 5,5; 6,5 / PZ/FL: 1 und 2/PH: 1+2 / |
| Art.No. | Size / mm | weight / g | Norm |
|---|---|---|---|
| 814 without plastic case | 450 x 370 x 210 | 14.000 |  |
| 814-1 with plastic case | 450 x 370 x 210 | 15.000 | |

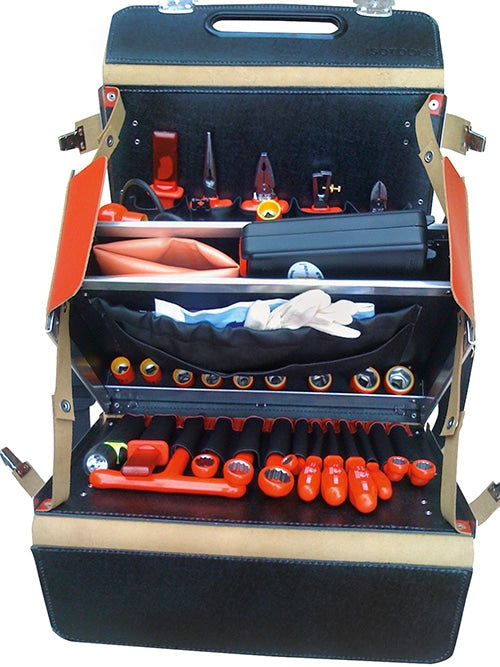

Art. No. 814 Tool Set with safety tools 51-piece with the highest quality VDE-Tools with multilayer insulation and PPE equipment.
The "all-inclusive package" for all cases.
Also suitable for working on hybrid and electric vehicles.
Extra recesses to accommodate additionally required tools.
Suitcase made of strong, smooth red cowhide leather.
All walls are extra reinforced.
We can equip any leather tool case with an internal NFC chip.
This can contain a link (to your website, to a list of tools, etc.).
Of course, we will gladly adapt the configuration to your wishes.
Tools with the double triangle symbol are tested and certified with a test voltage of 10,000 volts and are suitable for working on live parts up to 1,000 volts.
All safety tools are stamped with the corresponding symbols of the standard:
VDE/EN 60900/IEC 60900 or with VDE/GS as well as with article number, dimension, year of manufacture, manufacturer, 1000 V and double triangle or VDE symbol.
The high-quality insulating plastic is compliant with the REACH regulation and withstands the latest PAH test.
