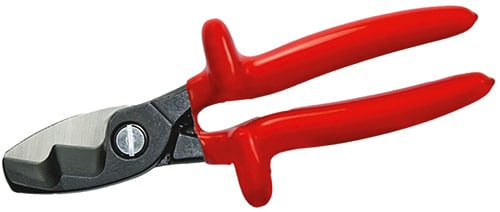

Double-Blade-Cable-Cutters 1000 V Art. No. 123
Double-Blade-Cable-Cutters 1000 V Art. No. 123
Price is only visible for activated customers
Double-Blade-Cable-Cutters 1000 V Art. No. 123
Please contact us for a product inquiry via our contact form.
Properties
Properties
- High-quality 2-color multi-layer insulation "Made in Germany"
- for solid and stranded copper and aluminum cables up to 50 mm²
- opening capacity Ø 20 mm
- low manual effort due to favorable leverage ratios
- precision-ground cutting edges for an easy, clean cut with one-hand operation
- forged from special tool steel
- not suitable for steel wire and hard-drawn copper conductors
- manufactured according to the latest standard VDE / EN 60900 / IEC 60900
Technical data
Technical data
Tools marked with the double triangle are tested with a test voltage of 10,000 volts, are certified, and are suitable for working on live parts up to 1,000 volts. All safety tools are stamped with the corresponding symbols of the standard: VDE / EN 60900 / IEC 60900 or with VDE/GS as well as with article number, dimension, year of manufacture, manufacturer, 1000V and the double triangle or VDE symbol. The high-quality insulating plastic is compliant with the REACH regulation and withstands the latest PAH test.
| Dim. / mm | Weight / g | Standard |
|---|---|---|
| 200 | 365 |  |
The 1000 V Double-Blade-Cable-Cutters are a high-quality and multiple dip-insulated tool, suitable for solid and stranded copper and aluminum cables up to 50 mm².
They feature an opening capacity of Ø 20 mm and require low manual effort thanks to favorable leverage ratios.
The precision-ground cutting edges allow for an easy and clean cut with one-hand operation.
The tool is forged from special tool steel.
Tools with the double triangle symbol are tested and certified with a test voltage of 10,000 volts and are suitable for working on live parts up to 1,000 volts.
All safety tools are stamped with the corresponding symbols of the standard:
VDE/EN 60900/IEC 60900 or with VDE/GS as well as with article number, dimension, year of manufacture, manufacturer, 1000 V and double triangle or VDE symbol.
The high-quality insulating plastic is compliant with the REACH regulation and withstands the latest PAH test.
